Kubernetes Internals Notes: API Server, RBAC, Scheduling, and Controllers

Why this note matters#

A lot of people learn Kubernetes by memorizing commands:

• kubectl get pods
• kubectl apply -f deployment.yaml
• kubectl rollout restart

That works for getting started, but it does not explain what Kubernetes is actually doing under the hood.

If you want Kubernetes to feel less mysterious, you need a stronger mental model.

This is the one I keep coming back to:

Kubernetes is a desired state engine.

You tell it what you want. The control plane keeps comparing reality to that desired state and keeps acting until they match.

• Desired state
• RBAC
• Scheduling
• Reconciliation

Expand

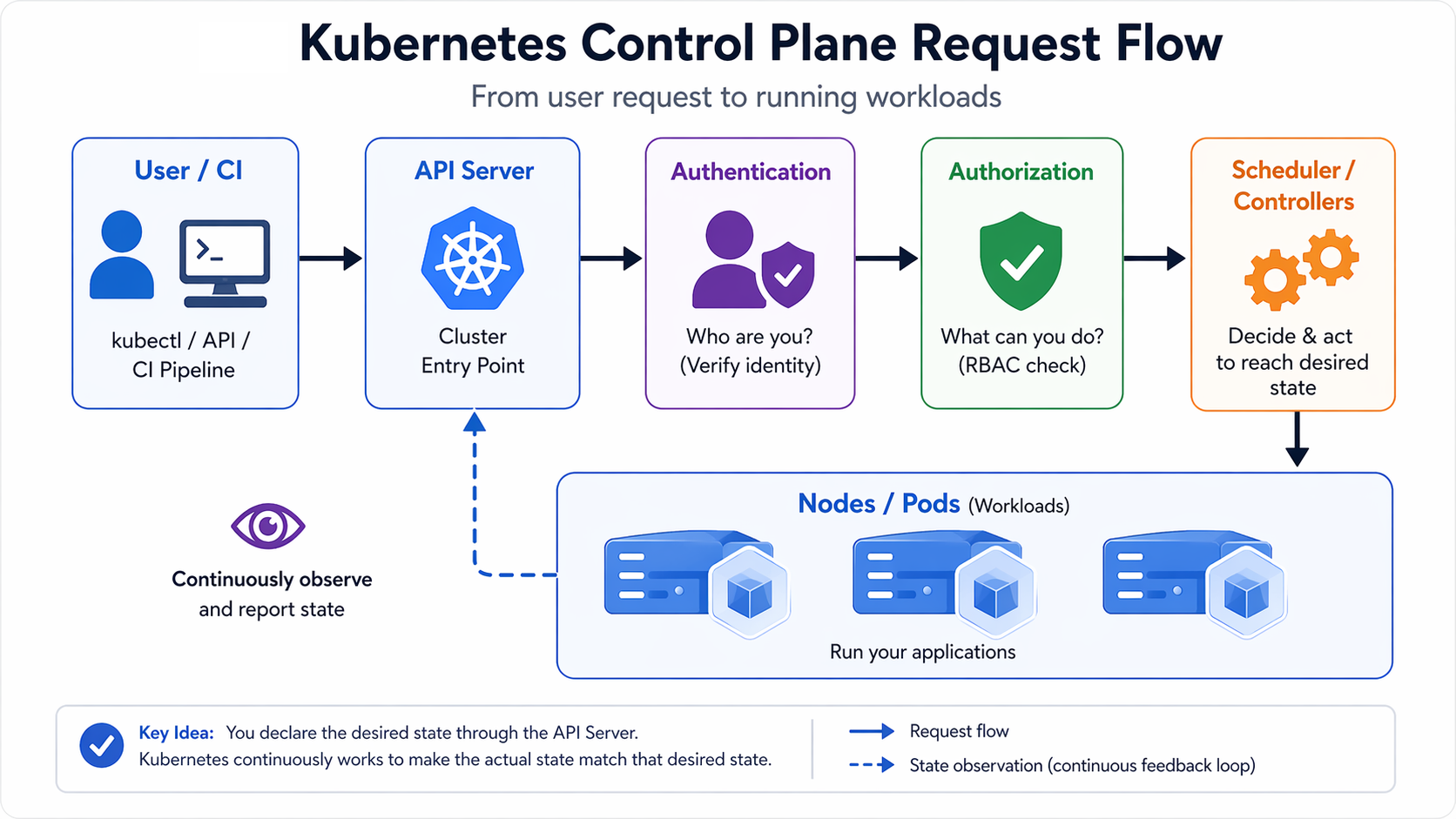

The request flow that explains most of Kubernetes#

When a request enters Kubernetes, there is a sequence behind it.

1. Request -> API Server2. Authentication -> Who are you?3. Authorization -> What are you allowed to do?4. Execution -> Scheduler and controllers act

This flow matters because it explains a lot of real-world behavior.

For example:

• why one user can deploy but another cannot
• why a service account can read pods but not secrets
• why a Deployment keeps creating replacement pods
• why a pod can stay Pending even when the Deployment exists

The API server is the front door.

Everything meaningful passes through it.

API server: the entry point#

The Kubernetes API server is the central interface for the cluster.

It receives requests from:

• humans using kubectl
• CI/CD pipelines
• controllers
• operators
• internal components

When you apply a manifest, you are not directly creating pods yourself.

You are sending a desired state declaration to the API server.

That declaration gets stored, validated, and then acted on by other control plane components.

This is why Kubernetes feels declarative instead of imperative.

You are usually saying:

This is the state I want.

Not:

Run these exact steps in this exact order forever.

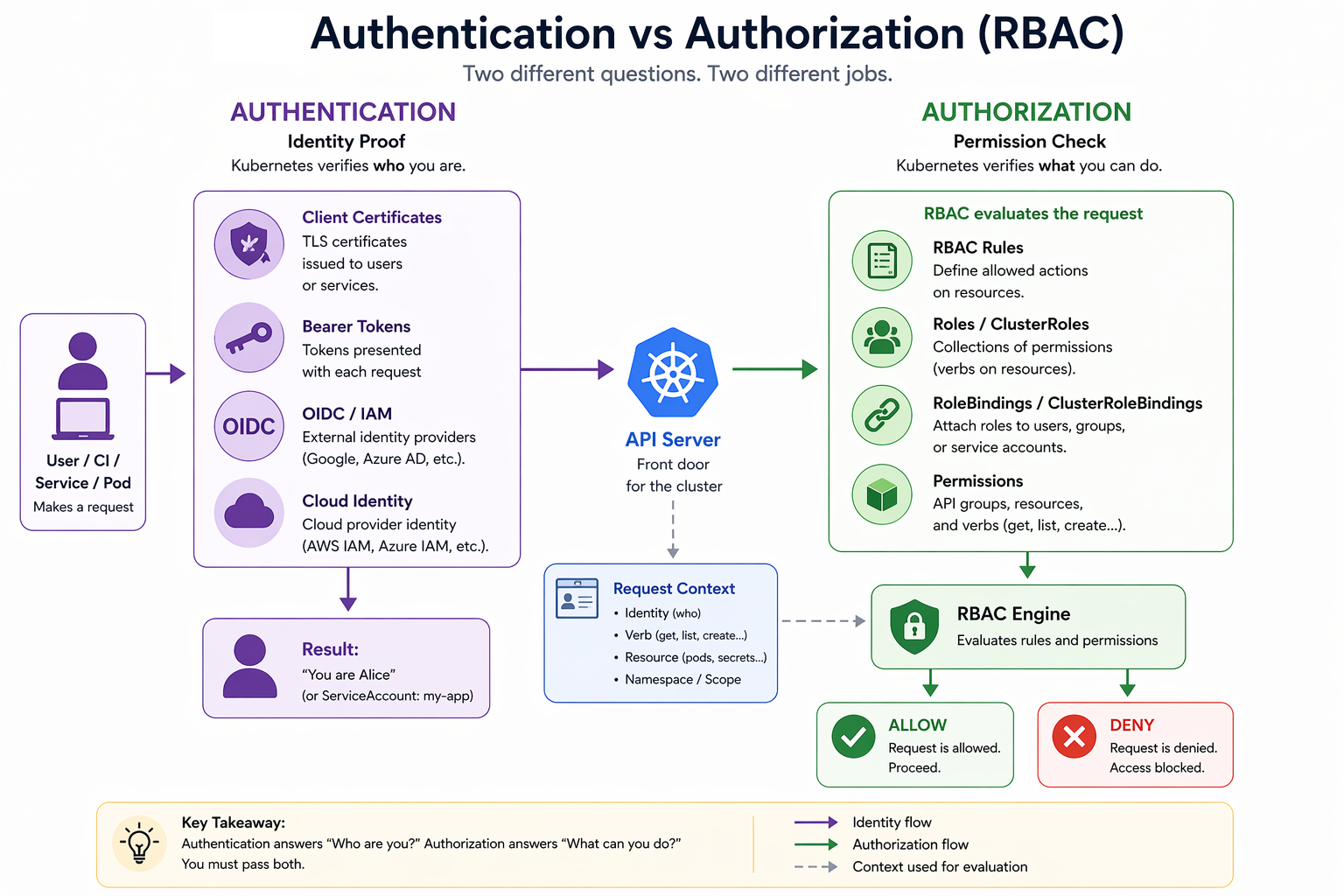

Authentication vs authorization#

These two concepts are often mixed together, but they solve different problems.

Authentication: who are you?#

Authentication is about identity.

Kubernetes needs to know who is making the request before it can decide what that request is allowed to do.

Common authentication methods include:

• client certificates
• bearer tokens
• OIDC
• cloud provider identity flows

In real-world managed clusters, human access often comes through cloud identity.

That usually looks like this:

• you log in through AWS, Azure, or another identity system
• you receive a token
• the API server validates that token

Human access in practice#

For humans, Kubernetes access is often tied to cloud IAM and organization identity.

That is why production access usually feels like:

• identity provider login
• short-lived credential or token
• API server validation
• RBAC check

This is better than using long-lived shared credentials because the identity is clearer and easier to audit.

Pod access inside the cluster#

Pods also need identity.

Inside Kubernetes, workloads typically use service accounts.

That gives a pod a Kubernetes identity inside the cluster.

If that workload also needs access to cloud resources, that identity can be bridged into the cloud. In AWS, a common example is IRSA.

That is a much better model than embedding cloud access keys inside the application.

Authorization: what are you allowed to do?#

Once identity is known, Kubernetes moves to authorization.

This is where the question becomes:

What actions can this identity perform?

The most common answer in Kubernetes is RBAC.

RBAC stands for Role-Based Access Control.

It defines permissions through:

• Role
• ClusterRole
• RoleBinding
• ClusterRoleBinding

These are normal Kubernetes resources stored through the API server, just like many other objects in the cluster.

Expand

Where roles and permissions are defined#

RBAC is declarative too.

Roles and bindings are defined as YAML and stored in the cluster.

Role#

Namespace-scoped permissions.

ClusterRole#

Cluster-wide permissions or reusable permission sets.

RoleBinding#

Connects a Role to a user, group, or service account inside a namespace.

ClusterRoleBinding#

Connects a ClusterRole to a subject at cluster scope.

Real-world RBAC example#

This role allows reading pod information in the dev namespace:

apiVersion: rbac.authorization.k8s.io/v1kind: Rolemetadata:  name: pod-reader  namespace: devrules:  - apiGroups: [""]    resources: ["pods"]    verbs: ["get", "list", "watch"]

Then bind it to a user:

apiVersion: rbac.authorization.k8s.io/v1kind: RoleBindingmetadata:  name: read-pods-binding  namespace: devsubjects:  - kind: User    name: aliceroleRef:  kind: Role  name: pod-reader  apiGroup: rbac.authorization.k8s.io

The result is:

• alice can view pods in dev
• alice cannot automatically modify or delete them
• the API server enforces both identity and permission checks

That is the security chain in action:

Identity verified -> Permissions checked -> Request allowed or denied

Controllers: the part that keeps the cluster honest#

Once a request is accepted, Kubernetes still has to make something happen.

This is where controllers become important.

Controllers continuously:

• watch cluster state
• compare desired state with actual state
• act to close the gap

That loop is the heart of Kubernetes.

Expand

Watch -> Compare -> Act -> Repeat

If you create a Deployment with replicas: 3, Kubernetes is not done after storing that YAML.

A controller keeps checking whether 3 matching pods are really running.

If only 2 exist, it creates another one. If one crashes, it creates another one. If the version changes, it drives the rollout process.

Core controller responsibilities#

Controllers carry a lot of the operational behavior people associate with Kubernetes.

Replication#

Controllers ensure the correct number of pods exists.

If a pod disappears, the controller works to restore the declared replica count.

Node health response#

Controllers also react when nodes fail.

If a node stops reporting properly:

• it can be marked NotReady
• workloads on it become unavailable
• replacement pods can be created on healthy nodes if capacity exists elsewhere

Continuous correction#

This is the bigger lesson:

Kubernetes is not a one-time execution engine.

It is a continuously correcting system.

Scheduler: the placement engine#

The scheduler is often mentioned alongside controllers, but it does a specific job:

It decides where a pod should run.

It is not about time. It is about placement.

If a pod stays in Pending, that often means the scheduler could not find a valid placement.

What the scheduler looks at#

Scheduling is not random.

The scheduler evaluates whether a node is a valid and sensible target based on several factors.

1. Resource availability#

At the simplest level, the target node needs enough available capacity for the pod's requests.

That can include:

• CPU
• memory
• GPU

If no node can satisfy the pod's requests, the pod stays pending until capacity appears.

2. Affinity and anti-affinity#

These are placement rules based on relationships with other pods.

They help answer questions like:

• should these workloads stay close together?
• should these replicas be spread apart?

Affinity: place related pods together#

Affinity is useful when two workloads benefit from being close.

A common reason is lower latency between tightly coupled services.

apiVersion: apps/v1kind: Deploymentmetadata:  name: frontendspec:  replicas: 2  selector:    matchLabels:      app: frontend  template:    metadata:      labels:        app: frontend    spec:      affinity:        podAffinity:          requiredDuringSchedulingIgnoredDuringExecution:            - labelSelector:                matchExpressions:                  - key: app                    operator: In                    values:                      - backend              topologyKey: "kubernetes.io/hostname"      containers:        - name: frontend          image: nginx

What this means:

• the scheduler looks for pods labeled app=backend
• it tries to place the frontend pod on the same node
• requiredDuringSchedulingIgnoredDuringExecution makes this a hard rule during scheduling

Anti-affinity: spread similar pods apart#

Anti-affinity helps reduce failure blast radius.

That is common for replicated services that should not all land on one node.

apiVersion: apps/v1kind: Deploymentmetadata:  name: payment-servicespec:  replicas: 3  selector:    matchLabels:      app: payment  template:    metadata:      labels:        app: payment    spec:      affinity:        podAntiAffinity:          requiredDuringSchedulingIgnoredDuringExecution:            - labelSelector:                matchExpressions:                  - key: app                    operator: In                    values:                      - payment              topologyKey: "kubernetes.io/hostname"      containers:        - name: payment          image: nginx

The result is simple:

• do not place multiple payment replicas on the same node if this rule must be enforced

That improves availability when a node fails.

3. Taints and tolerations#

Taints and tolerations work from a different angle.

Instead of expressing pod-to-pod relationships, they control whether certain pods are allowed onto certain nodes.

Taints: node-side keep-out rules#

A taint is applied to the node.

Example:

kubectl taint nodes node1 key=value:NoSchedule

That tells the scheduler:

Do not place pods here unless they tolerate this taint.

Tolerations: pod-side permission to enter#

A toleration does not force a pod onto a node.

It only says:

This pod is allowed to run on a node with a matching taint.

Example:

apiVersion: apps/v1kind: Deploymentmetadata:  name: allowed-podspec:  replicas: 1  selector:    matchLabels:      app: allowed  template:    metadata:      labels:        app: allowed    spec:      containers:        - name: nginx          image: nginx      tolerations:        - key: "key"          operator: "Equal"          value: "value"          effect: "NoSchedule"

This pod can be scheduled onto a node tainted like this:

kubectl taint nodes node1 key=value:NoSchedule

Now compare that with a mismatched toleration:

apiVersion: apps/v1kind: Deploymentmetadata:  name: blocked-podspec:  replicas: 1  selector:    matchLabels:      app: blocked  template:    metadata:      labels:        app: blocked    spec:      containers:        - name: nginx          image: nginx      tolerations:        - key: "key"          operator: "Equal"          value: "wrong-value"          effect: "NoSchedule"

That does not match the taint value, so the pod is still blocked from that node.

A more flexible version uses Exists:

tolerations:  - key: "key"    operator: "Exists"    effect: "NoSchedule"

That means the pod tolerates any taint using that key, regardless of value.

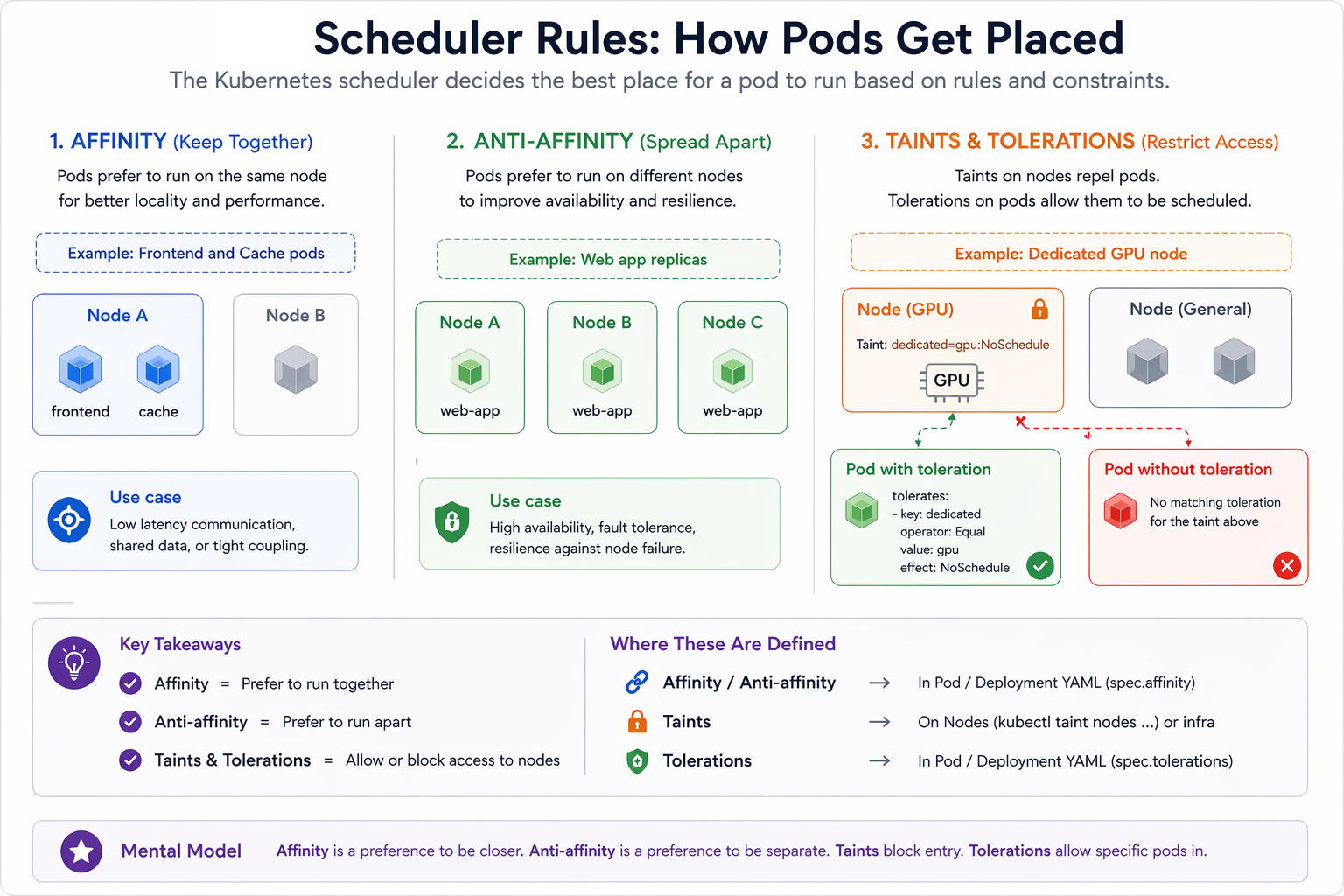

A simple scheduler mental model#

If scheduling rules feel abstract, this summary helps:

Affinity        = keep related pods togetherAnti-affinity   = spread similar pods apartTaints          = block pods from a node by defaultTolerations     = allow specific pods onto tainted nodes

Where these rules are defined#

Expand

Deployments and rolling updates#

Deployments are one of the easiest ways to see the control loop in practice.

When you update a Deployment, Kubernetes does not usually destroy everything at once.

Instead, it performs a rolling update.

That generally looks like this:

1. Create a new pod
2. Wait for it to become healthy
3. Remove an old pod
4. Repeat until the new version fully replaces the old one

That behavior gives you important benefits:

• lower downtime risk
• safer rollout progression
• simpler rollback path when something goes wrong

In CI/CD, this is powerful because the pipeline usually only needs to submit the new desired state.

The Deployment controller then handles the rollout mechanics.

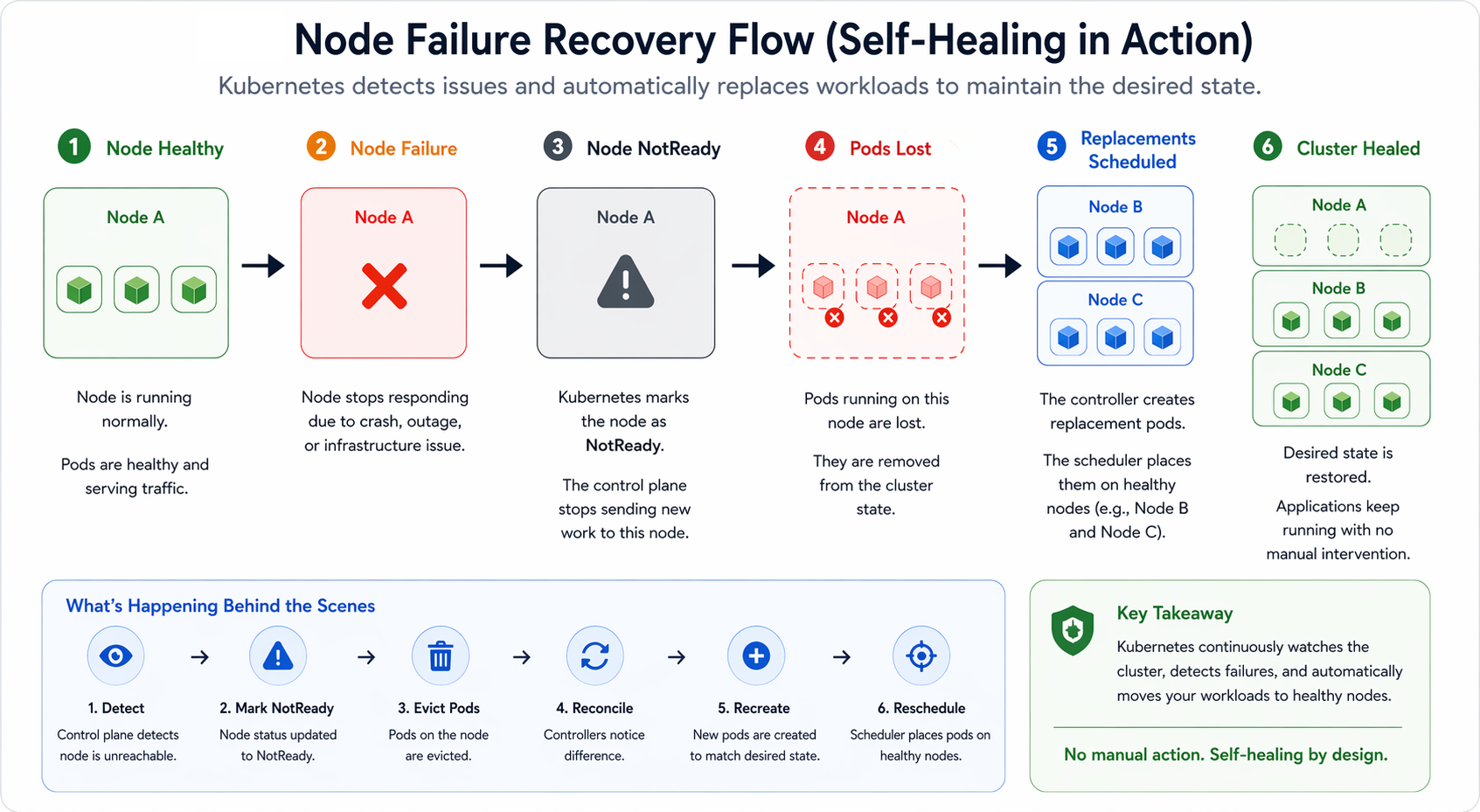

Node health and resilience#

Kubernetes reliability depends heavily on node health.

Imagine this scenario:

1. A node stops responding
2. The cluster detects that problem
3. The node may be marked NotReady
4. Workloads on that node become unavailable
5. Replacement pods are scheduled elsewhere if healthy capacity exists

Expand

This is why single-node environments are dangerous for important workloads.

If the only node fails, there is nowhere else to place replacements.

The stronger pattern is:

• multiple nodes
• spread across Availability Zones
• scheduling rules that avoid stacking critical replicas on one machine

That is where Kubernetes moves from demo environment to resilient platform.

Cost vs resilience#

There is always a trade-off here.

More nodes usually mean:

• more spare capacity
• better failure tolerance
• higher infrastructure cost

A common platform strategy is to use spare capacity intentionally:

• place lower-priority workloads there
• use PriorityClass
• allow preemption when critical workloads need room

This is a good example of real cloud engineering:

you are not only making the system work, you are balancing reliability and cost.

Important controller types across the ecosystem#

Once you understand the reconciliation model, the wider Kubernetes ecosystem makes much more sense.

Workload controllers#

• Deployment
• ReplicaSet
• StatefulSet
• DaemonSet
• Job
• CronJob

Autoscaling#

• HPA
• VPA
• Cluster Autoscaler
• Karpenter
• KEDA

Networking#

• Ingress controllers
• AWS Load Balancer Controller
• Istio
• Linkerd

Security and policy#

• OPA Gatekeeper
• Kyverno
• Falco

Secrets and config#

• External Secrets Operator
• cert-manager

Observability#

• Prometheus Operator
• Grafana

GitOps and delivery#

• Flux
• Argo CD
• Tekton

Infrastructure#

• Crossplane
• AWS Controllers for Kubernetes

Backup and chaos#

• Velero
• LitmusChaos

These tools can feel unrelated at first, but many of them follow the same core pattern:

• watch a resource
• compare actual state with desired state
• act until they match

That is why the controller model is so important.

The final mental model#

If you want one compact map of Kubernetes internals, use this:

API Server   -> entry pointAuth         -> who you areRBAC         -> what you can doScheduler    -> where it runsControllers  -> make and keep it runningNodes        -> where workloads live

This is the model that helps many separate ideas click into one system.

Golden rule#

At its core, Kubernetes keeps coming back to the same loop:

Watch. Compare. Act.

That is why it can:

• recreate lost pods
• roll out new versions
• enforce placement rules
• reconcile platform resources continuously

Closing thought#

Once you start seeing Kubernetes as a control system rather than just a container runtime, a lot of confusion disappears.

You are no longer only thinking:

• how do I run this Deployment?

You are also thinking:

• how does the request enter the cluster?
• how is identity verified?
• how are permissions enforced?
• who decides placement?
• what keeps the declared state true over time?

That shift is what starts turning Kubernetes from a tool you use into a system you actually understand.
